Quick Answer
Hanger shot blasting machines are used in foundries, automotive supply, steel fabrication, forging, heat treatment, agricultural machinery, and heavy equipment manufacturing.
They are suitable for heavy, complex, or damage-sensitive parts that must rotate through the blast stream without colliding with other workpieces.
Small bulk parts are usually better suited to rubber belt tumble machines; plates and long profiles to continuous sheet-profile lines.

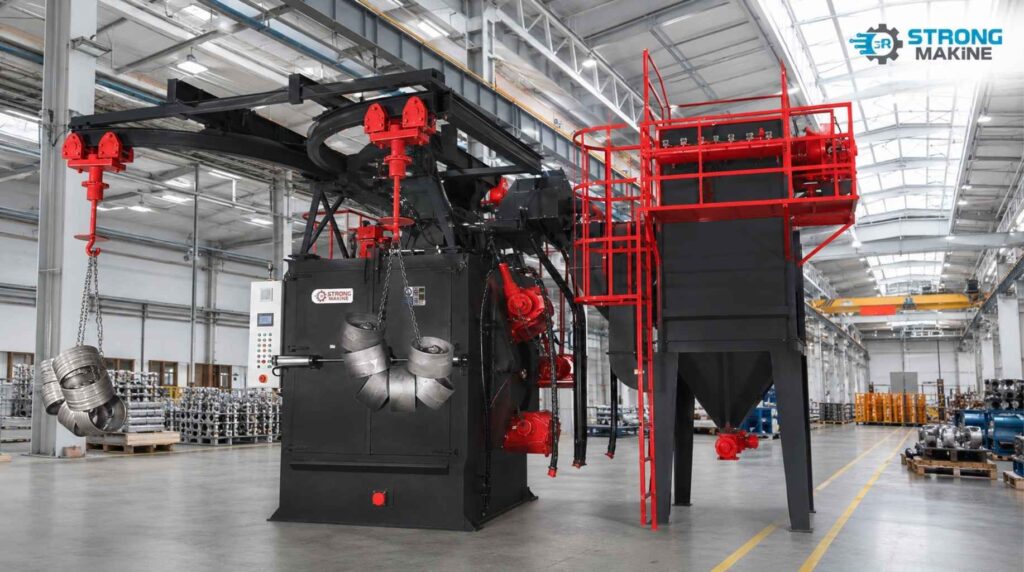

A hanger shot blasting machine cleans rust, scale, casting sand, oxides, and coating residues from large or geometrically complex metal parts. The workpiece is carried into the chamber on a hook, rotated, and exposed to abrasive from strategically positioned turbines. This makes the process useful when parts cannot be safely tumbled together.
Which Industries Use Hanger Shot Blasting Machines?
Foundries: Castings and Sand Removal
Iron and steel foundries use hanger shot blasting machines to remove moulding sand, burnt-on sand, scale, and surface residues from castings. Pump and valve bodies, gearbox housings, motor blocks, large brackets, and complex cast components are typical examples. Internal pockets and shadow zones must be considered when turbines and fixtures are arranged.
Automotive and Tier Suppliers
Automotive plants and suppliers may blast engine or transmission housings, axle parts, differential bodies, wheels, brackets, and welded components before coating or inspection. Hanger handling prevents part-to-part impact. Y-track, monorail, or multi-hook configurations can reduce loading time for repeat batches.
Steel Fabrication and Heavy Industry
Welded frames, machine bodies, crane components, energy equipment, and fabricated assemblies can be cleaned on hooks. The process removes rust, mill scale, and suitable welding residues before painting. Long standard profiles and plates, however, usually favour a roller-conveyor sheet and profile blasting line.
Forging and Heat Treatment
Forged and heat-treated components often carry oxide scale that must be removed before machining, coating, or inspection. Gear blanks, agricultural components, heavy forged parts, and suitable tool bodies may be processed. Material hardness, surface sensitivity, abrasive, and exposure time require sample validation.
Agricultural, Defence, and Machinery Manufacturing
Fabricated agricultural machinery parts, suitable defence components, construction equipment parts, moulds, and special machine elements are possible applications. Sector name alone is not enough: the part must be safely suspended, fit within the useful envelope, tolerate impact, and receive adequate turbine exposure.
What Workpieces Are Suitable for Hanger Blasting?
Large or sensitive parts that would be damaged by tumbling against each other
Parts that can be safely carried on a hook, fixture, or dedicated rack
Complex shapes that benefit from rotation through several blast angles
Components requiring repeatable preparation before coating, inspection, or assembly
Batch-produced parts with a defined cycle and loading method
When Is a Hanger Machine Not the Best Choice?
Hook loading is inefficient for thousands of small bulk parts; a rubber belt tumble machine may be better. Long plates, beams, and profiles that exceed the chamber envelope favour a continuous conveyor line. Thin or impact-sensitive parts should not enter series production until sample tests confirm that deformation and cosmetic damage remain acceptable.
Hanger vs Tumble vs Sheet-Profile Shot Blasting
| Machine | Workpiece | Typical sector | Why selected |
| Hanger type | Large, heavy, complex | Foundry, automotive, heavy industry | No part-to-part impact; rotation |
| Rubber belt tumble | Small bulk parts | Fasteners, small castings | High batch count |
| Sheet-profile | Plate, beam, pipe | Steel service, fabrication | Continuous line flow |
When Is a Rubber Belt Tumble Shot Blasting Machine Better?
A rubber belt tumble shot blasting machine is generally better for bolts, nuts, washers, small castings, pressed parts, and similar products that can be loaded in bulk. The belt continuously turns the batch through the abrasive stream. Collision risk must be checked for fragile threads, thin edges, and cosmetic surfaces.
When Is a Sheet and Profile Shot Blasting Machine Better?
A sheet and profile shot blasting machine is used for plates, I/H beams, angles, pipes, and long structural products. Material passes continuously through the chamber on a roller conveyor. Line speed, section mix, turbine placement, and the required preparation result must be engineered together.
What Data Is Needed to Select a Hanger Machine?
Maximum workpiece dimensions, weight, centre of gravity, and lifting points
Hourly quantity, batch size, loading time, and acceptable cycle time
Initial surface, contamination, required preparation grade, and inspection method
Abrasive, turbine flow, dust generation, separator, and filtration requirements
Rail layout, factory height, utilities, maintenance access, and downstream process
ISO 8501-1 is a recognised reference for visual assessment of rust grades and preparation grades of blast-cleaned steel. A purchase specification should still define the workpiece, coating system, sample test, inspection approach, and acceptance result instead of relying on a grade label alone.
What Matters for Buyers in Poland, Romania, and Austria?
European buyers should connect the application to local production realities. Polish foundries and steel fabricators may prioritise batch flexibility and wear-part availability; Romanian automotive and metalworking suppliers may focus on repeatability, commissioning, and line integration; Austrian machinery producers may place additional emphasis on documentation, service response, and factory-space optimisation.
Each quotation should confirm conformity responsibilities, manuals, guarding, interlocks, dust extraction, installation, training, warranty, remote support, and critical spare parts. The European Commission notes that CE marking can be applied only after the required testing and conformity-assessment procedure under applicable EU legislation.
How Does Strong Makine Configure Hanger Systems?
Strong Makine was established in 2023 by a team bringing together 20 years of sector experience. Its AK-series hanger machines can be configured around useful chamber size, hook load, turbine quantity, filtration, and rail arrangement. For export projects, application data, sample expectations, installation responsibility, service scope, and spare-parts logistics should be fixed before order confirmation.
Frequently Asked Questions – FAQ
Which metals can be cleaned in a hanger shot blasting machine?
Iron, steel, suitable castings, and other metal parts can be processed when material, thickness, hardness, and surface sensitivity are compatible with the selected abrasive and cycle.
Are hanger machines used before painting?
Yes. They remove rust, scale, and contaminants to create a specified surface for coating; the required cleanliness and profile depend on the coating system.
How are heavy parts loaded?
Cranes, forklifts, monorails, or Y-track systems may be used. Hook load, centre of gravity, fixture strength, and safe locking must be engineered.
What determines hanger machine price?
Chamber size, hook capacity, turbines, rail system, filtration, automation, safety package, and custom engineering determine the price.
Can every workpiece be cleaned in one cycle?
No. Geometry, shadowing, contamination, and target result affect exposure and cycle count; sample testing should verify the process.
People Also Ask – PAA
What automotive parts use hanger shot blasting?
Suitable engine, transmission, axle, differential, wheel, bracket, and welded components can be cleaned before coating or inspection.
What is the difference between hanger and tumble blasting?
Hanger systems carry parts separately; tumble systems process small parts together in a moving batch.
How much weight can a hanger shot blasting machine carry?
Capacity depends on the machine model, hook load, workpiece envelope, rail arrangement, and safe weight distribution.
