Hanger Shot Blasting Machine
Hanger Shot Blasting Machine: Flawless Surface Quality on Large Parts
In the competitive landscape of industrial manufacturing, the integrity of your final product is non-negotiable. Whether you are in the automotive, foundry, or steel construction sector, the presence of rust, scale, or welding slag is a critical liability. The Strong Makine Hanger Shot Blasting Machine (AK Series) is engineered to eliminate these liabilities, transforming your surface preparation process from a production bottleneck into a strategic advantage.

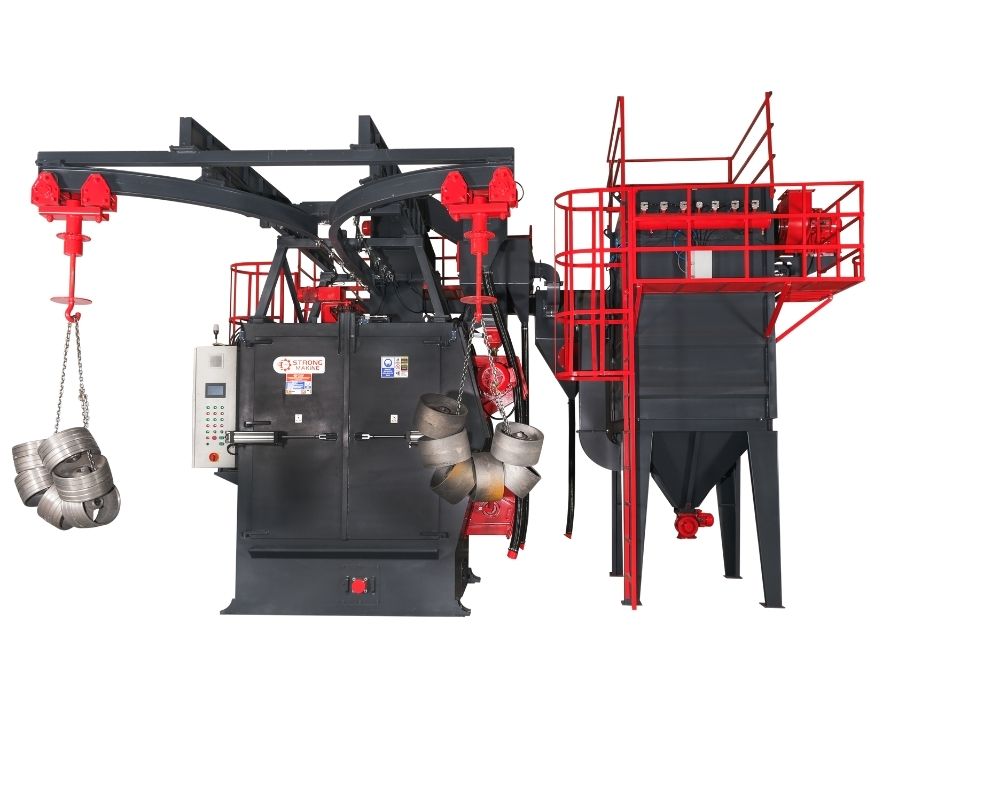

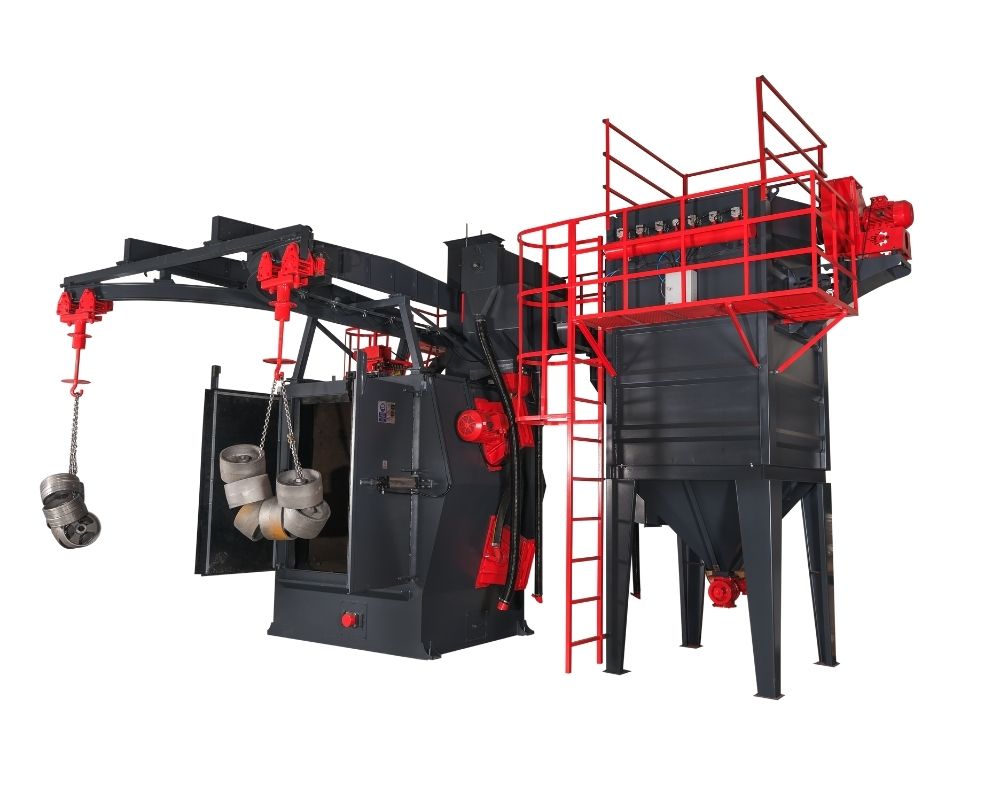

Designed for large, heavy, and geometrically complex components that cannot be tumbled, this shot blasting machine represents the pinnacle of surface treatment engineering. The logic is simple yet powerful: parts are loaded onto a robust hanger system—either standard, monorail, or “Y” type—and transported into the blasting chamber. Here, the components undergo a rigorous cleaning cycle where they are rotated and bombarded by high-velocity abrasives from strategically positioned turbines.
Unlike manual methods which are prone to human error and inconsistency, the Strong Makine hanger shot blasting machine delivers uniform coverage, hitting every crevice, undercuts, and internal pocket of the workpiece. This automation ensures a standardized surface profile (Sa 2.5), essential for the adhesion of subsequent coatings. From the compact AK-0 model (900mm diameter) to the massive AK-5 (2250mm diameter) industrial beasts, Strong Makine offers a scalable solution. By integrating high-durability manganese steel liners and energy-efficient turbines, we reduce your operational costs while maximizing throughput. Investing in a Strong Makine hanger type shot blasting machine is not just about buying equipment; it is about securing the longevity and quality of your production line.
The Powerful Solution for Industrial Production: Strong Makine Hanger Shot Blasting Machine
When evaluating a shot blasting machine, the difference between an average unit and a high-performance asset lies in the engineering details. Strong Makine has developed its hanger shot blasting machine series to withstand the harshest industrial environments while delivering precision results. The core of this system is its ability to handle “fragile” yet heavy parts that require 360-degree impact without part-on-part collision.
Mechanism and High-Efficiency Turbines

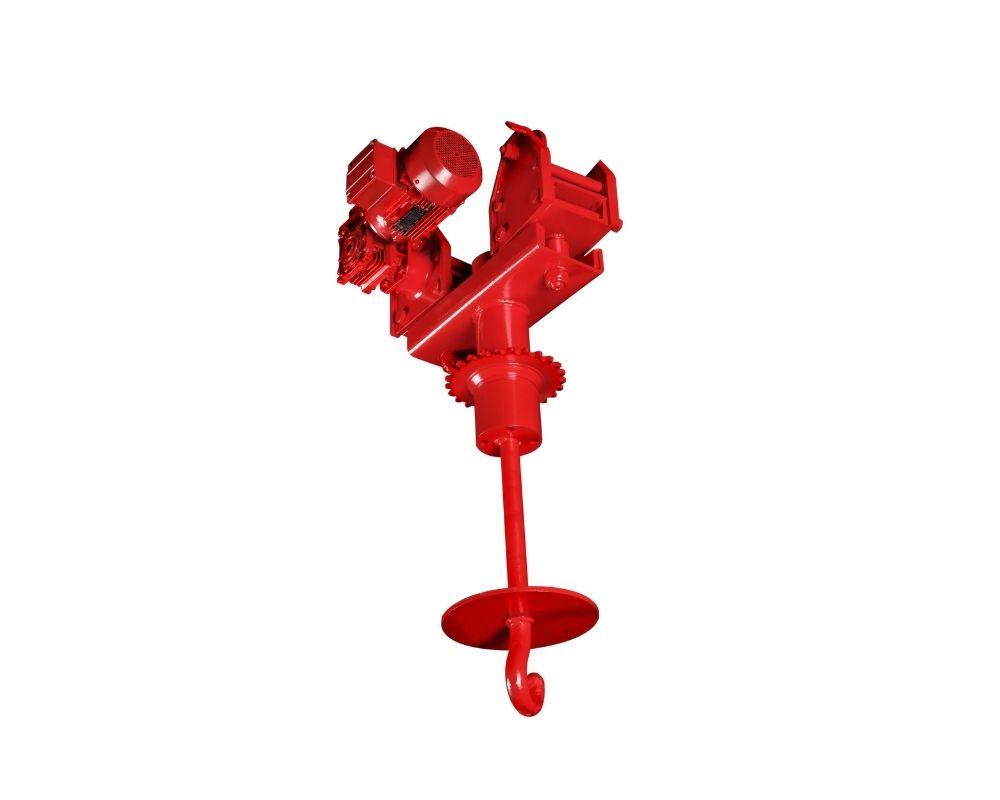

The efficiency of a hanger type shot blasting machine is dictated by its turbines. Strong Makine utilizes high-performance turbines that project abrasive media (steel shots or grits) at optimal velocities. The hook system rotates the workpiece inside the cabin, ensuring that the “shadow effect”—where one part of the object blocks another from the blast stream—is completely eliminated. This rotation, combined with the calculated angles of the turbines, guarantees that even the most intricate casting geometries and welded steel structures are cleaned down to the bare metal.
Durability That Defines The Industry
A common pain point in the shot blasting industry is the rapid wear of internal components. To combat this, the internal cabin of every Strong Makine unit is reinforced with premium Manganese Steel liners. This material is not only resistant to abrasion but actually work-hardens under impact, significantly extending the lifespan of the machine compared to standard rubber or mild steel alternatives.
Insight from the Industry Floor: In professional manufacturing forums like Practical Machinist or Foundry Management, a recurring debate centers on “Initial Cost vs. Total Cost of Ownership.” The consensus among veteran plant managers is clear:
“Buying a cheap shot blasting machine is the most expensive mistake you can make. The downtime caused by constant liner replacements and turbine failures costs ten times more than the price difference of a quality machine. Always look for manganese liners and balanced turbines.”
This industry reality validates Strong Makine’s commitment to using only high-grade materials. We build machines designed to run, not to be repaired.
Applications and Versatility
The versatility of the hook type shot blasting machine makes it the preferred choice for diverse sectors.
- Foundries: Removal of sand and burnt-on sand from iron, steel, and aluminum castings.
- Automotive: Descaling of engine blocks, cylinder heads, and transmission components.
- Steel Construction: Surface preparation of welded structures before painting to prevent corrosion.
- Forging: Cleaning of scale from heat-treated parts.
Why Choose Strong Makine?
In the global market, finding a shot blasting machine manufacturer that balances cost, quality, and after-sales support is rare. Strong Makine stands out by offering customized solutions. Whether you need a specific hook capacity (from 500kg to tons) or a specialized “Y” track system for continuous loading/unloading, our engineering team adapts the hanger shot blasting machine to your workflow. We don’t just sell you a machine; we optimize your entire surface treatment line for global competitiveness.
Hanger Shot Blasting Machine Technical Specifications
| DISCRIPTION | UNIT | AK-0 | AK-1 | AK-2 | AK-3 | AK-4 | AK-5 |
|---|---|---|---|---|---|---|---|
| Basket Diameter | ∅ mm | 900 | 1200 | 1200 | 1500 | 2000 | 2250 |
| Basket Height | mm | 1100 | 1200 | 1500 | 1600 | 2200 | 3000 |
| Capacity and Number of Hangers | Ton-Unit | 0.5 – 2 | 1.5 – 2 | 2 – 2 | 2 – 2 | 5 – 1 | 7.5 – 1 |
| Number of Turbine | Unit | 2 | 2 | 2 | 2 | 4 | 6 |
| Turbin Diameter / Number of Pallets | ∅ – Pcs. | 325 – 8 | 400 – 8 | 400 – 8 | 400 – 8 | 400 – 8 | 400 – 8 |
| Turbine Motor | KW | 5.5 | 11 | 15 | 15 | 11 | 15 |
| Hanger Rotating Motor | KW | 0.37 | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 |
| Turbine Granule Capacity | Kgs/min. | 100 | 190 | 240 | 240 | 190 | 240 |
| Filter Capacity | m2 | 18 | 36 | 36 | 48 | 64 | 100 |
| Air Lock Motor | NER 60 | – | 0.55 | 0.55 | 0.55 | 0.55 | 1.1 |
| Fan Motor | KW | 1.5 | 4 | 4 | 5.5 | 7.5 | 11 |
| Fan Capacity | m3/h | 2200 | 4000 | 4000 | 5500 | 7500 | 10000 |
| Seperator Motor | KW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3 |
| Elevator Motor | KW | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 5.5 |
| Total Power | KW | 15 | 32 | 38 | 40 | 58 | 112 |
| Width of Machine | mm (+1000) | 4500 | 7000 | 7000 | 7500 | 9000 | 10000 |
| Depth of Machine | mm (+500) | 3250 | 4750 | 4750 | 5100 | 5750 | 6000 |
| Height of Machine | mm (+400) | 3500 | 4600 | 5000 | 5100 | 6700 | 8000 |
| Height of Suspension | mm | 750 | 840 | 840 | 1000 | 1000 | 1100 |
Frequently Asked Questions (F.A.Q)
What types of parts are best suited for a Hanger Shot Blasting Machine?
This machine is ideal for parts that are too large or heavy for tumble blasting, or parts with complex shapes that might be damaged if they collide with each other. Common examples include engine blocks, welded steel frames, agricultural machinery parts, and fragile castings.
What abrasive media should be used with Strong Makine equipment?
The most common media are steel shots (spherical) and steel grits (angular). Steel shots are generally used for cleaning and peening, while steel grits are used when a more aggressive etching is required for coating adhesion. Our team helps you select the correct grain size based on your desired surface finish.
Can the hanger system be integrated into an existing production line?
Yes. Strong Makine designs its hanger shot blasting machines with integration in mind. We can configure overhead monorail systems (Y-type or continuous loop) to connect directly with your existing transport lines, minimizing manual handling and streamlining the workflow from casting to coating.
