Rubber Belt Tumble Shot Blasting Machine: The Most Efficient Surface Preparation Solution for Small Metal Parts
A rubber belt tumble shot blasting machine is an industrial surface preparation system designed to clean, descale, and deburr small-to-medium bulk metal parts — such as bolts, nuts, and castings — homogeneously and at high speed without causing part damage. STR Strong Makine‘s LTK series, available in 100 kg and 300 kg drum capacities, enables foundry, automotive OEM, and fastener manufacturers to maximize surface quality while reducing operational costs.
What Is a Rubber Belt Tumble Shot Blasting Machine?

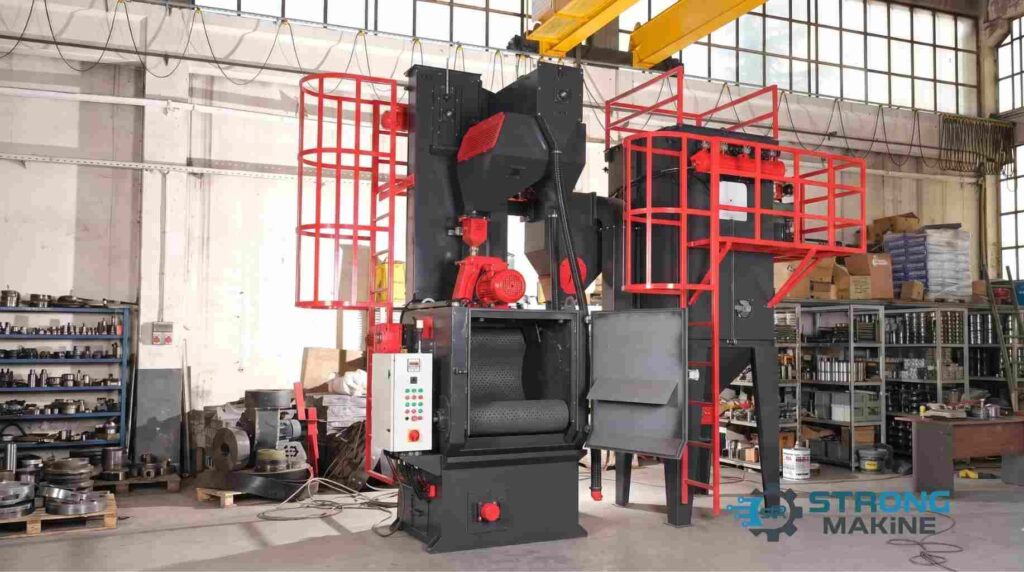

A rubber belt tumble shot blasting machine (also called a tumblast machine) is a fully automated surface cleaning system in which parts are placed in bulk inside a rotating, perforated, high-abrasion-resistant rubber belt drum and exposed to high-velocity steel shot or grit propelled by one or more turbines. The gentle, continuous tumbling motion ensures that every part surface receives equal abrasive exposure, leaving no blind spots. Compared to manual methods, this system produces results up to 10 times faster with consistent, repeatable quality.
How Does a Rubber Belt Tumble Shot Blasting Machine Work?
The operating cycle consists of four key stages:
- Loading: Parts are batch-loaded into the perforated rubber belt drum.
- Blasting: As the drum rotates slowly, a strategically positioned turbine propels steel shot at 3,000 rpm toward the tumbling parts.
- Filtering: Used abrasive filters through the drum perforations and falls into the machine’s lower hopper.
- Recycling: The elevator collects the abrasive, the separator removes dust and broken particles, and clean abrasive is returned to the turbine for continuous closed-loop operation.
What Makes the STR Strong Makine LTK Series Different?
Key technical and operational differentiators of the LTK series over standard tumblast machines on the market:
- Part Safety: The elastic rubber belt protects screw threads, thin edges, and fragile surfaces from deformation during blasting.
- Homogeneous Cleaning: Continuous tumbling guarantees equal abrasive exposure on every surface — no dead zones, no re-processing.
- Full Automation: A single operator can process thousands of parts per shift with minimal intervention beyond loading and unloading.
- Low Energy Footprint: LTK-100 total installed power is just 10 kW — a compelling operating cost advantage over comparable capacity methods.
- Compact Footprint: The LTK-100 fits easily into small workshops (2,200 × 2,500 × 3,000 mm), requiring no major facility modifications.
LTK-100 vs LTK-300: Which Model Is Right for You?
| Specification | LTK-100 | LTK-300 |
|---|---|---|
| Drum Capacity | 100 kg | 300 kg |
| Max Part Weight | 4 kg | 8 kg |
| Drum Diameter | Ø 550 mm | Ø 700 mm |
| Turbine Motor | 5.5 kW / 3,000 rpm | 7.5 kW / 3,000 rpm |
| Turbine Granule Flow | 100 kg/min | 130 kg/min |
| Fan Air Flow | 750 m³/h | 2,200 m³/h |
| Filter Type | Cartridge – 22 m² | Bag – 18 m² |
| Machine Width | 2,200 mm (+500) | 5,000 mm (+500) |
| Total Power | 10 kW | – |
| Ideal Sector | Fasteners, small castings | Automotive OEM, medium castings |
Where Are Rubber Belt Tumble Shot Blasting Machines Used?
Fastener Industry
Bolts, nuts, screws, and washers require clean, scale-free surfaces before zinc plating, hot-dip galvanizing, or painting. The LTK-100 handles thousands of pieces per batch, delivering consistent Sa 2.5 surface quality with minimal abrasive consumption.
Foundry Industry
Small iron, steel, and aluminum castings — fresh from the mold — carry sand residues and burrs that must be removed before secondary operations. The LTK series eliminates these in a single automated cycle, reducing manual grinding labor by up to 80%.
Automotive OEM Industry
Brake components, small brackets, springs, and pressed parts produced at high volume require standardized surface profiles. The LTK-300’s 300 kg drum capacity and 130 kg/min granule flow keep pace with demanding production schedules.
Heat Treatment & Forging
The oxide layer (scale) that forms on parts during heat treatment or forging operations is efficiently removed by the tumble shot blasting process, eliminating the need for acid pickling or manual wire brushing.
| 💬 Industry Floor Insight — Plant Manager, Fastener Manufacturing“We were skeptical about the ROI before buying the LTK-300. After six months in operation, our surface rejection rate on bolts dropped from 8% to under 0.4%. Full payback came in under seven months — and that’s conservative.” |
Technical Specifications: Rubber Belt Tumble Shot Blasting Machines
| DESCRIPTION | SYMBOL | LTK-100 | LTK-300 |
|---|---|---|---|
| Drum Capacity | kg | 100 | 300 |
| Max Weight of Parts | kg | 4 | 8 |
| Diameter of Drum | Ø mm | 550 | 700 |
| Length of Drum | mm | 600 | 800 |
| Turbine Diameter / No. of Pallets | Ø mm | 320 – 6 | 320 – 6 |
| Number of Turbines | Pcs. | 1 | 1 |
| Turbine Motor / Rotation | kW / rpm | 5.5 / 3,000 | 7.5 / 3,000 |
| Fan Air Flow | m³/h | 750 | 2,200 |
| Turbine’s Granule Flow | kg/min | 100 | 130 |
| Drum Turning Motor | kW / rpm | 1.1 / 1,500 | 1.1 / 3,000 |
| Elevator Motor | kW / rpm | 1.1 / 1,500 | 1.5 / 1,500 |
| Filter Capacity | m² / type | 22 / Cartridge | 18 / Bag |
| Fan Power | kW / rpm | 1.1 / 3,000 | 1.5 / 3,000 |
| Width of the Machine | mm (+500) | 2,200 | 5,000 |
| Depth of the Machine | mm (+500) | 2,500 | 2,850 |
| Height of the Machine | mm (+500) | 3,000 | 3,750 |
| Total Electric Power | kW | 10 | – |
Frequently Asked Questions – FAQ
What is the difference between a tumble shot blasting machine and a hanger shot blasting machine?
Tumble (rubber belt) machines are designed for small-to-medium bulk parts processed together in a rotating drum. Hanger machines are designed for large, heavy, or geometrically complex single parts that are hung individually inside a blasting chamber. For high-volume, small parts — choose tumblast. For large, single-piece processing — choose hanger type.
What materials can be processed in a rubber belt tumble shot blasting machine?
Iron, steel, and aluminum castings; fasteners (bolts, nuts, washers, screws); pressed and forged small metal parts; and heat-treated components. Maximum single-part weight is 4 kg for LTK-100 and 8 kg for LTK-300. The flexible rubber drum protects delicate surfaces and fine threads from impact damage.
What is the typical ROI period for a tumble shot blasting machine?
Based on industry data, the average payback period ranges from 6 to 18 months, depending on production volume and current labor costs. Operations replacing manual blasting or wire brushing recover the investment fastest, often under 12 months.
Can STR Strong Makine produce custom LTK machines to non-standard specifications?
Yes. In addition to standard LTK-100 and LTK-300 models, STR Strong Makine offers custom engineering and manufacturing for specific drum capacities, conveyor line integrations, or special automation requirements. Contact the engineering team with your production parameters.
What abrasive media is used in the LTK tumblast machines?
Steel shot (S-series) and steel grit (G-series) are the primary abrasive media. The fully automatic closed-loop abrasive recovery system — elevator, separator, and turbine feed — ensures that abrasive is continuously cleaned and reused, minimizing consumption costs.
People Also Ask (PAA)
What is a tumblast shot blasting machine used for?
It is used to automatically clean, descale, and deburr small bulk metal parts before coating, painting, plating, or assembly — achieving Sa 2.5 surface cleanliness in a single automated cycle.
What is the difference between rubber belt and steel drum shot blasting machines?
Rubber belt drums protect sensitive surfaces and fine-threaded parts from impact damage due to their elasticity. Steel drums are used for harder, more robust parts that can withstand metal-on-metal contact. For fasteners and small castings, rubber belt is the industry standard.
How much energy does a tumble shot blasting machine consume?
The LTK-100 has a total installed power of 10 kW. This is significantly lower than equivalent-capacity traditional sandblasting or wire-brushing operations, resulting in lower per-unit energy costs at scale.
Does STR Strong Makine offer after-sales technical support?
Yes. STR Strong Makine provides comprehensive pre-sales consultation, installation commissioning, and after-sales technical support including original spare parts supply and maintenance guidance.
